Tuner4TRONIC Cloud
Configure LED drivers online.
Program them anywhere.

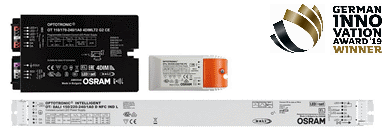

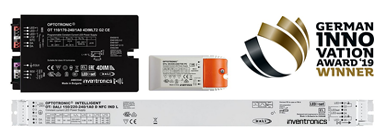

The universal software suite for the award-winning INVENTRONICS LED drivers. Create configurations in your browser, then program drivers on the production line with P4 or on site with the Field App.
How Tuner4TRONIC works
One configuration, created once in the cloud, travels through every tool – from the design desk to the production line to the luminaire in the field. And back.
Configurator
or REST API · in the cloud
.osrtupProduction FileProgramming tool
P4 · P4 Lite · Field App · T4T-CMD
LED driver
configured & locked
LED driver
settings & monitoring data
Reading tool
P4 · P4 Lite · Field App · T4T-CMD
.osrturReadback fileConfigurator
visualize · reuse · clone
The Production File is encrypted and read-only. Every driver on the line or in the field receives exactly the configuration you approved – and Configuration Lock keeps it that way.
Readback data goes back to the Configurator. Visualize it, use it as the template for a new Production File, or paste it straight into a replacement driver.
What do you want to do?
Pick your role to see the steps and the tools for the job.
Configure the driver online
Output current, dimming profile (AstroDIM, StepDIM, MainsDIM, DALI), constant lumen output and more. Validation rules flag out-of-range or conflicting values immediately.
Protect it with Configuration Lock
A master key locks safety-relevant settings. A service key lets installers adjust light output or dimming – only within the limits you define.
Download the Production File
An encrypted, read-only
.osrtupfile. Send it to your production line or by email to installers.
T4T Configurator
Create and manage driver configurations and Production Files. Imports readback data as a template.
Tunable White LED Module Editor
Define custom tunable-white LED modules and use them in your configurations.
T4T REST API
Create luminaire configurations and Production Files automatically, e.g. when a new order arrives in your ERP system.
Load the Production File
The
.osrtupfile can't be edited on the line, so every driver receives exactly the approved settings.Program in series
Via DALI, NFC or Prog+/Prog−, with several programming interfaces on one PC, a programming report and optional label printing.
Read back for quality checks
Read any driver, save it as an
.osrturfile or open it directly in the Configurator.
T4T Production 4 (P4)
The full production tool: automatic programming, reports, monitoring data and label printing.
T4T P4 Lite
Portable – unzip and run, no installation. Program from Production Files, read drivers and copy settings to a replacement. Ideal for labs, samples and small batches.
T4T-CMD & T4T-DLL
Integrate programming and readback into automatic test and programming stations.
T4T Simple Current (T4T-S)
Only need to set the output current? Read a sample driver and program drivers of the same type – no Production File needed.
Programming hardware: DALI Magic, FEIG NFC readers (ISC.PRH101, CPR30, ISC.MR102, ISC.LR1002), ID ECCO Smart HF.BLE, PRG-MUL2.
Receive the Production File by email
Share the
.osrtupattachment from your mail app into the Field App and inspect it before programming.Program via NFC – without mains power
Tap Program, then hold the phone (or a Bluetooth NFC scanner) to the NFC logo on the driver. No wiring, no power.
Adjust on site
Change light output, constant lumen and the dimming profile within the limits set by the luminaire manufacturer – e.g. switch off dimming at a pedestrian crossing.
T4T Field App
Program, adjust, read and clone NFC drivers on site with your smartphone.
NFC scanner (optional)
For phones with a weak or restricted NFC antenna: a stable connection over Bluetooth, and easier access to drivers inside a luminaire.
Read the driver
Get its settings and monitoring data such as operating hours and failure counters. In most cases even a failed driver can still be read via NFC.
Replace in seconds with copy/paste
Read the old driver, write to the new one. All settings, including the DALI short address, are copied – no need to know how the luminaire was configured.
Analyze in the Configurator
Email the
.osrturreadback file, import it in the Configurator, then visualize it or use it as the template for a new Production File.
T4T Field App
On site: read reports and monitoring data, copy/paste to a replacement driver.
T4T P4 Lite
In the workshop: Read ECG, then open the data in the Configurator or paste it to a replacement.
T4T Production 4 (P4)
Deep diagnostics: monitoring data with automatic logging, resettable counters and HTML export.
T4T Configurator
Import .osrtur readback files to visualize them and create new Production Files.
Which tool do I need?
| Task | Configurator | P4 | P4 Lite | Field App | CMD / DLL | T4T-S |
|---|---|---|---|---|---|---|
| Create a configuration / Production File | ● | |||||
| Program drivers in series production | ● | ○ | ● | |||
| Program samples or small batches | ○ | ● | ○ | |||
| Set only the output current | ● | |||||
| Program installed luminaires on site | ● | |||||
| Adjust light output / dimming on site | ● | |||||
| Read back a driver | ● | ● | ● | ● | ||
| Read monitoring data | ● | ● | ||||
| Copy settings to a replacement driver | ● | ● | ● | |||
| Visualize readback data | ● | ○ |
● main tool for the task · ○ also possible
Choose your tool
Everything you need to configure luminaires, defined in the cloud and ready for production.
Tuner4TRONIC Configurator
Configure LED drivers and create production files – output current, operating mode, dim profiles and more.
StartTunable White LED Module Editor
Define your own premium Tunable White LED modules and use them in your driver configurations.
StartSupported Products
Browse the complete list of LED drivers and products supported in Tuner4TRONIC.
View list
